OUTLOOK
SPECIFICATION
|
Par NO Parameter |
LY-FL260250PW (200-250W) |
|
|
Input voltage |
AC100V～277V 50/60HZ |
|
|
POWER(W) |
200 |
250W |
|
Luminous flux(lm) |
33000 |
40250 |
|
Chip Brand |
LUXEON5050 |
|
|
LED Quantity (PCS) |
96 |
|
|
Beam Angle |
10°/20°/40°/60°/30*50° |
|
|
CRI |
>70 |
|
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
|
|
Luminous efficiency(lm/w) |
＞165 |
＞160 |
|
LED Driver |
MEAN WELL / INVENTRONICS |
|
|
Lifespan(h) |
＞50000 |
|
|
IP Rating / IK |
IP66 / IK10 |
|
|
Material |
ADC 12 |
|
|
Dimmable |
1-10V / PWM / DALI2 |
|
|
Light body color |
Black/Grey |
|
|
Size(mm) |
L587*W186.5*H198mm (L23.0*W7.34*H7.8Inch) |
|
|
Net Weigh(kg) |
5.2 |
|
|
Package Quantity(PCS) |
1 |
|
|
Gross Weigh(kg) |
6.5 |
|
|
Package Size(mm) |
L645*W255*H240mm (L25.39*W10.04*H9.45inch) |
|
|
Installation height(m) |
8-15 |
|
APPLICATION
It is applicable to playground lighting, warehouse lighting, plaza lighting, court lighting and so on.
FEATURES
1. The product adopts module design, ventilation and heat dissipation, longer life;
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as high as 220lm/w
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;

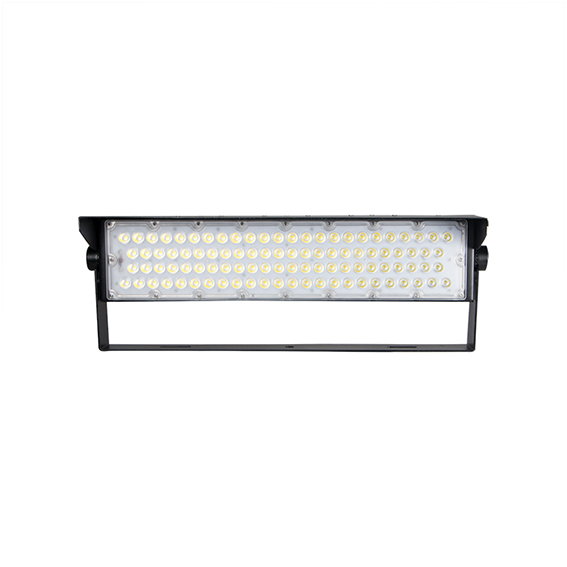

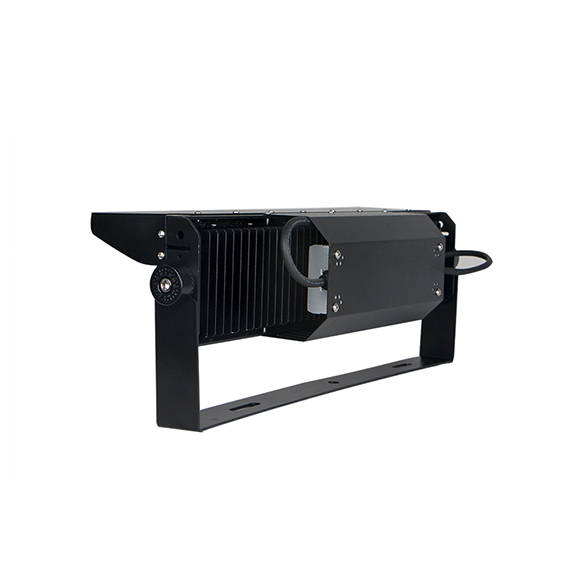

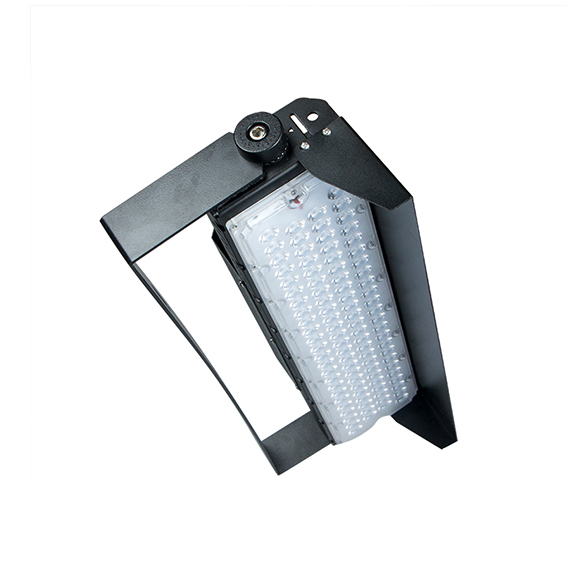

250W Supermoon Stadium Light
