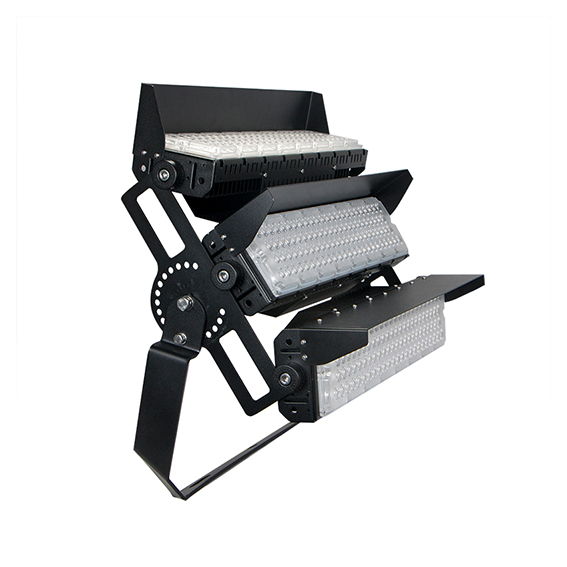

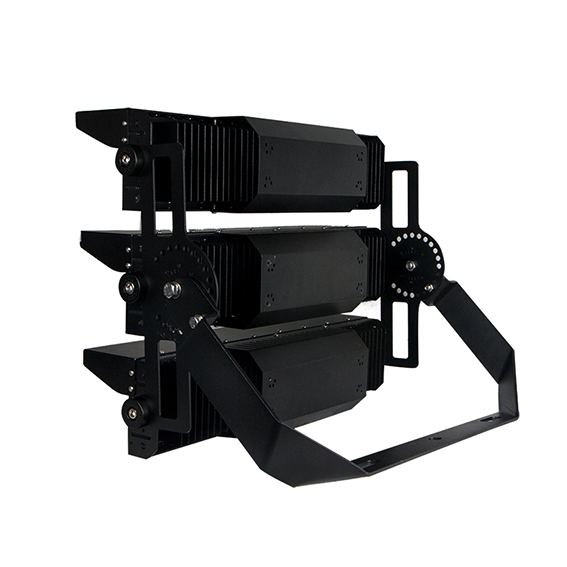

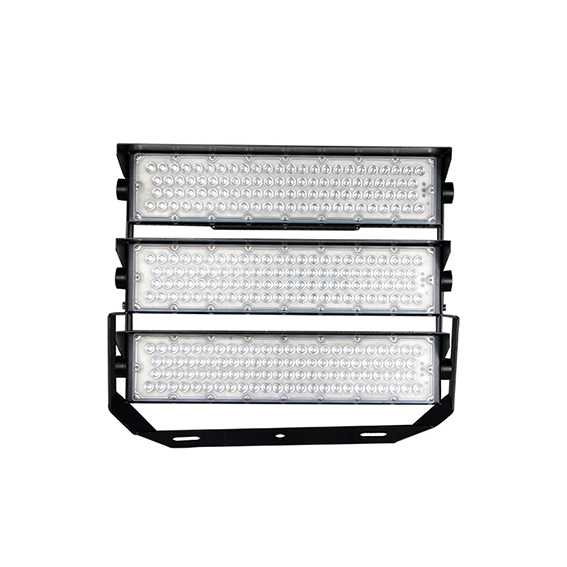

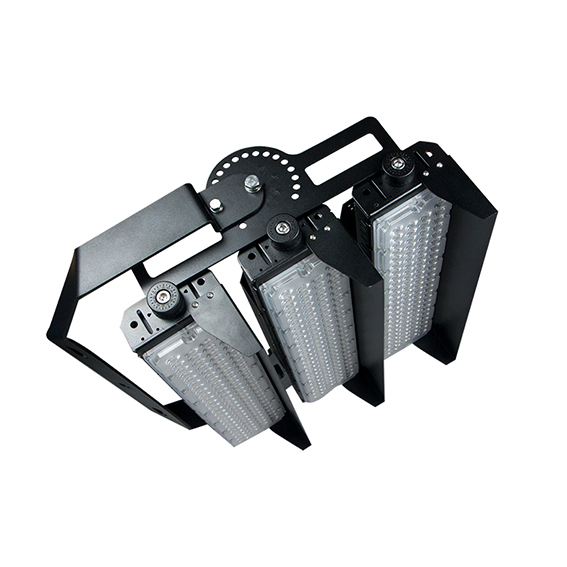

OUTLOOK

SPECIFICATION
|
Par NO Parameter |
LY-FL260750PW (600-800W) |
||
|
Input voltage |
AC100V~277V 50/60HZ |
||
|
POWER(W) |
600 |
700 |
800 |
|
Luminous flux(lm) |
99000 |
114200 |
128000 |
|
Chip Brand |
LUXEON5050 |
||
|
LED Quantity (PCS) |
288 |
||
|
Beam Angle |
10°/20°/40°/60°/30*50° |
||
|
CRI |
>70 |
||
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
||
|
Luminous efficiency(lm/w) |
>165 |
>163 |
>160 |
|
LED Driver |
MEAN WELL / INVENTRONICS |
||
|
Lifespan(h) |
>50000 |
||
|
IP Rating / IK |
IP66 / IK10 |
||
|
Material |
ADC 12 |
||
|
Dimmable |
1-10V / PWM / DALI2 |
||
|
Light body color |
Black/Grey |
||
|
Size(mm) |
L628*W403.5*H436mm (L23.0*W15.89*H17.17Inch) |
||
|
Net Weigh(kg) |
16.2 |
||
|
Package Quantity(PCS) |
1 |
||
|
Gross Weigh(kg) |
17.5 |
||
|
Package Size(mm) |
L645*W545*H275mm (L25.39*W21.46*H10.83inch) |
||
|
Installation height(m) |
15-40 |
||
APPLICATION
It is applicable to playground lighting, warehouse lighting, plaza lighting, court lighting and so on.
FEATURES
1. The product adopts module design, ventilation and heat dissipation, longer life;
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as high as 220lm/w
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
